This table will give you an opinion of how much you have to pay for replacement parts for
the Aero.
| Part name | Number | Country | Date | Price in US$ | |
|---|---|---|---|---|---|
| Screen | |||||
| Display panel Monochrome 7.75" Diagonal for the 4/25 | 190624-001 | ||||
| Display panel CSTN 8" Diagonal for the 4/33c | 199232-001 | USA | March 98 | $100.00 | |
| CSTN Backlight Inverter Board | 199223-001 | USA | March 98 | $30.00 | |
| Display enclosure kit 4/25 | 197237-001 | USA | March 98 | $20.00 | |
| Display bezel 4/25 | 197344-001 | ||||
| Display enclosure kit 4/33c w/hinges | 199257-001 | USA | August 97 | $41.75 | |
| Display bezel 4/33c | 199260-001 | USA | March 98 | $10.00 | |

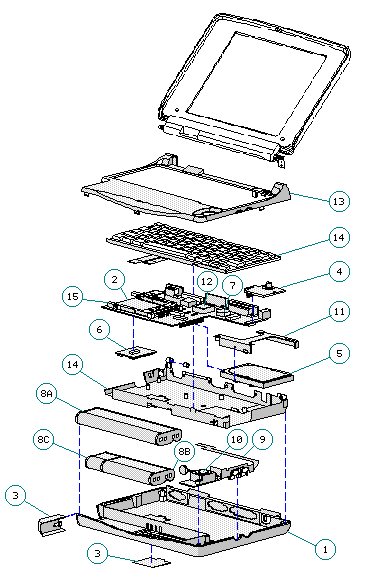

| Chassis Components | |||||
| 1 | Base assembly (Base Enclosure) | 197253-001 | USA | September 97 | $25.00 |
| 3 | Door assembly | 197239-001 | USA | March 98 | $15.00 |
| 9 | Trackball cable and speaker assembly | 197312-001 | USA | March 98 | $20.00 |
| 10 | Trackball assembly | 197286-001 | USA | March 98 | $25.00 |
| 11 | Hard drive bracket | 197236-001 | |||
| 13 | CPU cover (Keyboard Enclosure) | 197311-001 | USA | September 97 | $16.75 |
| 14 | Keyboard | 199276-001 | October 98 | $50.00 | |
| 15 | PCMCIA Eject Assembly | 197314-001 | $30.00 | ||
| System Board | |||||
| 2 | System board, 4MB w/o PCMCIA ejector, Aero 4/25 | 197241-001 | $75.00 | ||
| 2 | System board, 4MB w/o PCMCIA ejector, Aero 4/33c | 199222-001 | USA | March 98 | $100.00 |
| 12 | System ROM | 197229-001 | |||
| Power Supply / Batteries | |||||
| 4 | Power Supply DC/DC | 190521-001 | USA | March 98 | $30.00 |
| Auto Adapter | 190551-001 | USA | |||
| NiMH Battery Pack | 190626-001 | ||||
| NiMH Battery Pack | 190697-001 | ||||
| Drives | |||||
| 5 | Model 250MB | 199233-001 | USA | ||
| 5 | Model 170MB | 190661-001 | |||
| 5 | Model 84MB | 190660-001 | |||
| External PCMCIA Diskette Drive | 190563-001 | USA | |||
| Memory | |||||
| 6 | 4MB Memory Expansion Board | 190565-001 | USA | ||
| 6 | 8MB Memory Expansion Board | 190596-001 | USA | ||
| Cables | |||||
| Display cable 4/25m | 197238-001 | USA | October 98 | $25.00 | |
| Display cable 4/33c | 199258-001 | USA | March 98 | $25.00 | |
| Miscellaneous | |||||
| Input Video Adapter (?) | 197364-001 | ||||
| 4/25 & 4/33C Display Hardware Kit (Screw assortment for Aero repair stations) |
197316-001 | USA | |||
| 3/20 & 3/25 Screws 2.5x.45 (Qty 25) (Screws to hold base together) |
142966-001 | USA | |||
| 4/25 & 4/33C Operations Manuals | USA | ||||
A great source for service parts etc. is Ambry Online. You will find the Aero parts at http://www.ambry.com/html/contura_aero.html.
